2011.06+ Fiat Ducato (250_, 290_) 115 Multijet 2.0 D, 250 A2.000, 250 A1.000, 116 HP Oil Pump Pickup Pipe Seal Gasket

Oil Pump Pickup Pipe Seal Gasket for Fiat For Alfa Romeo For Lancia 1.6 2.0 2.2 JTDM

Feature:

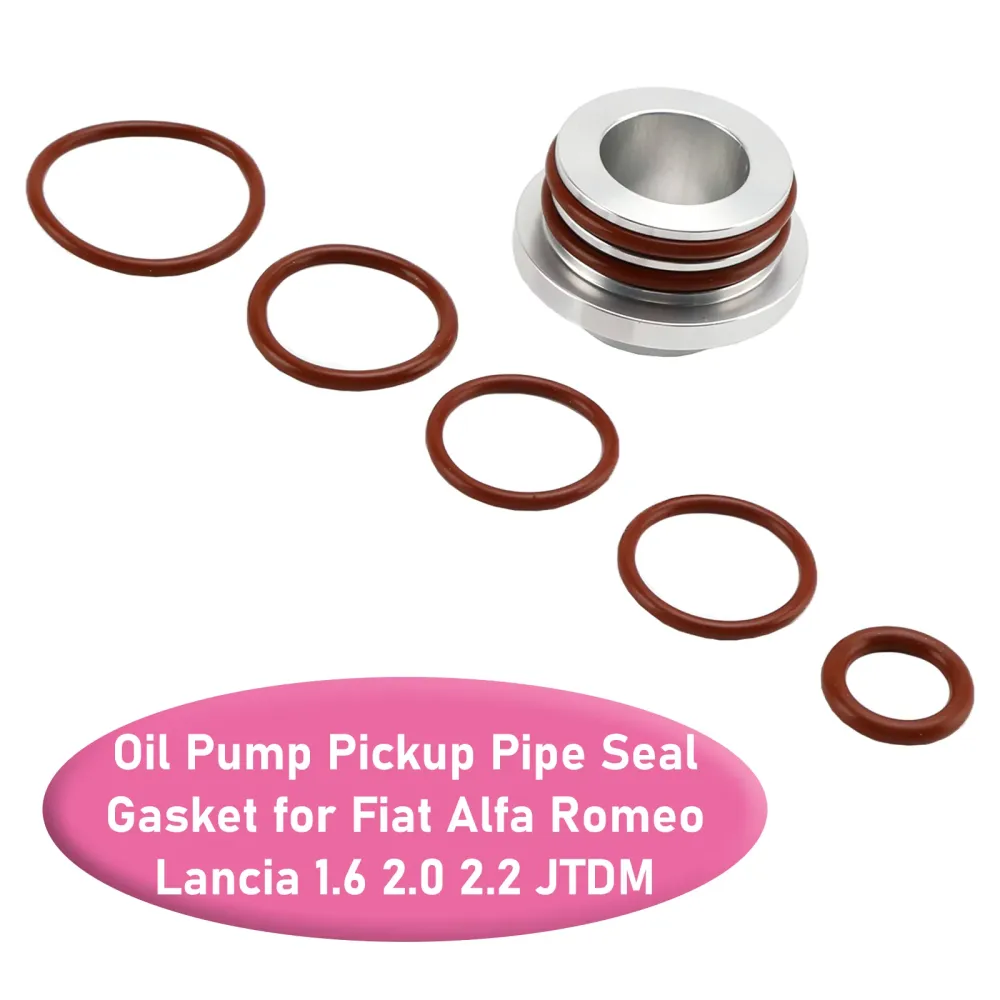

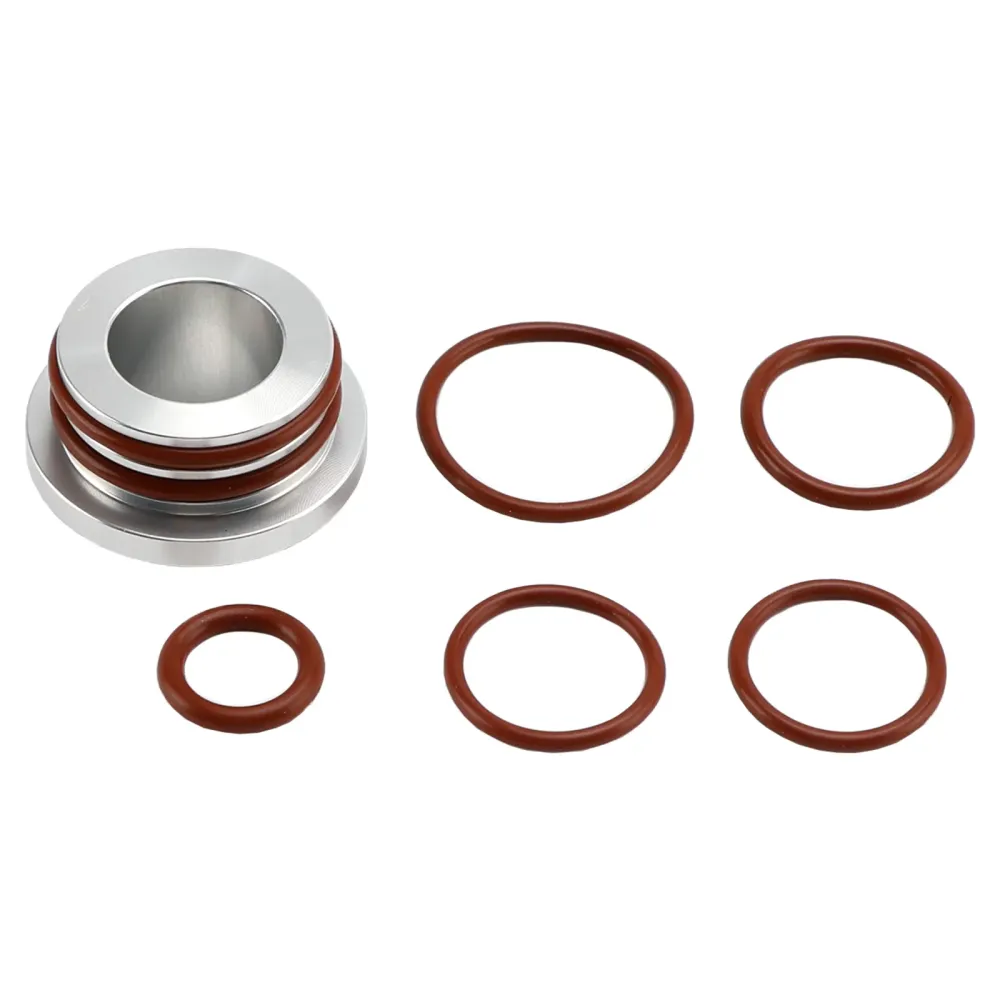

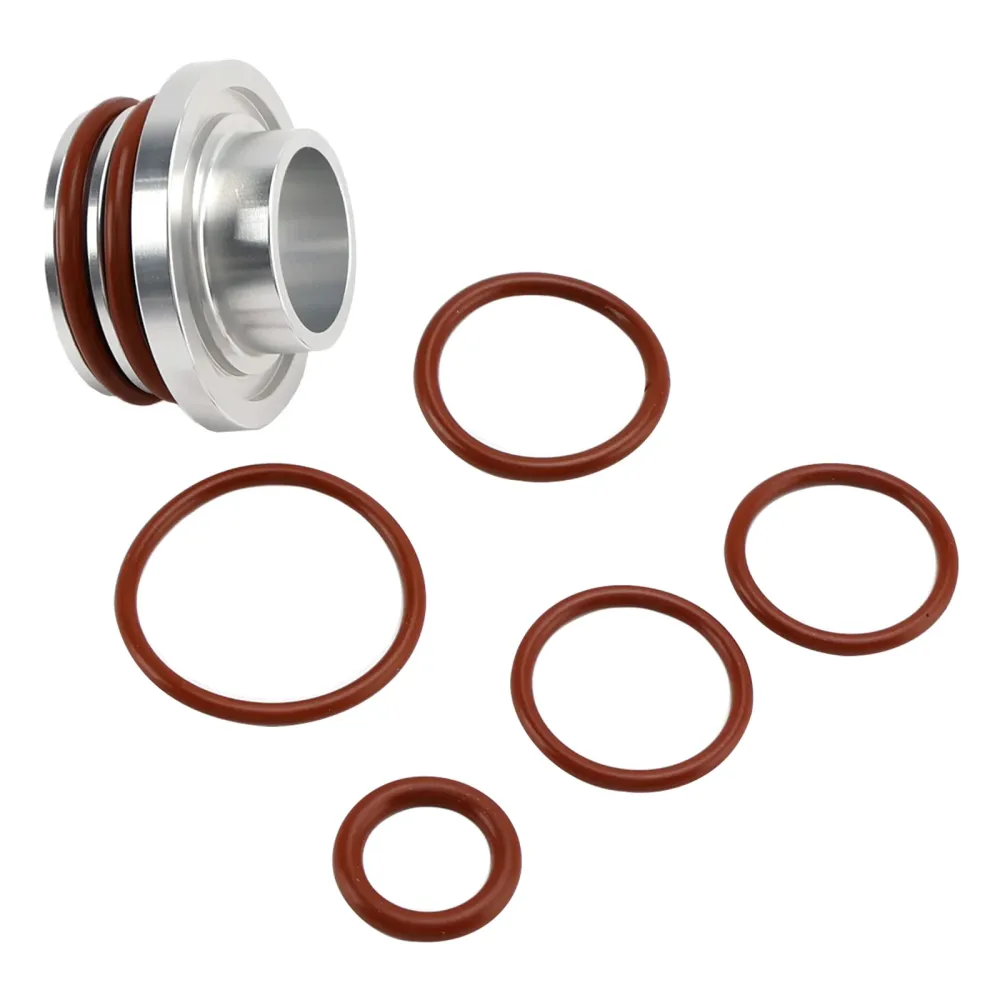

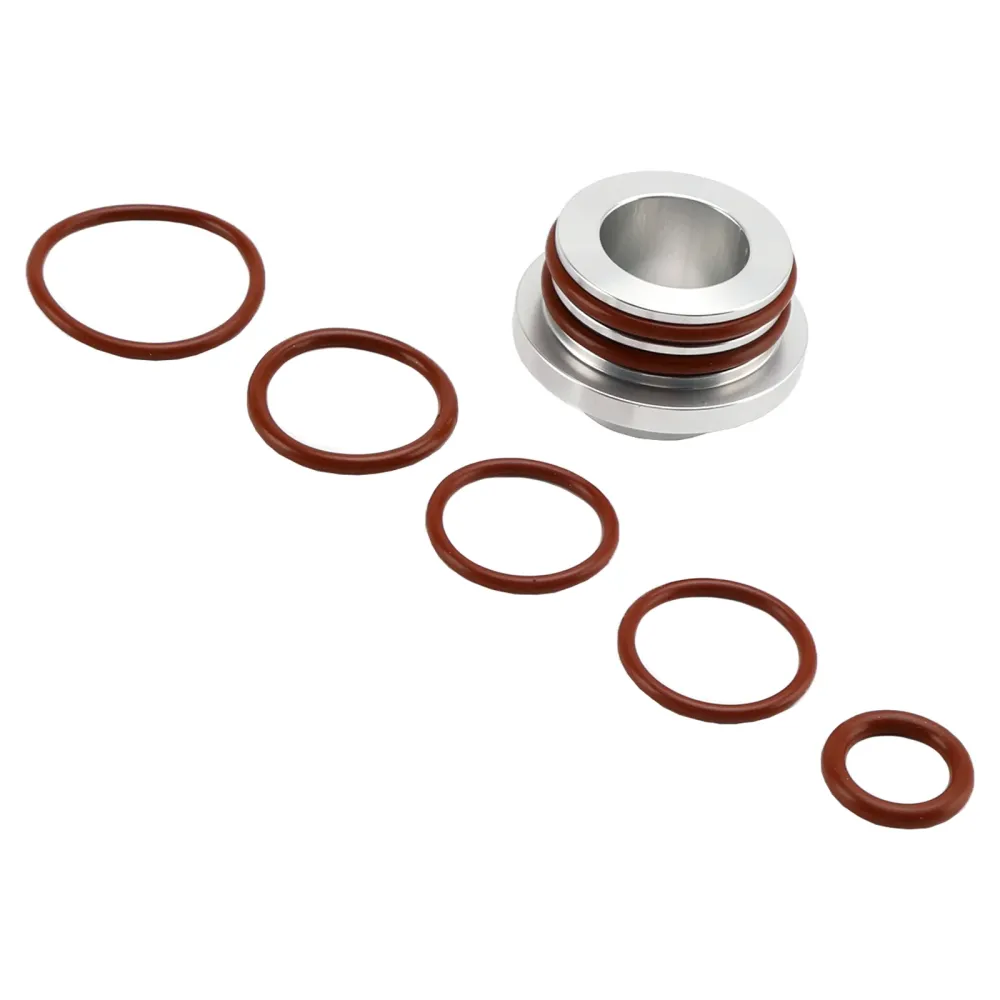

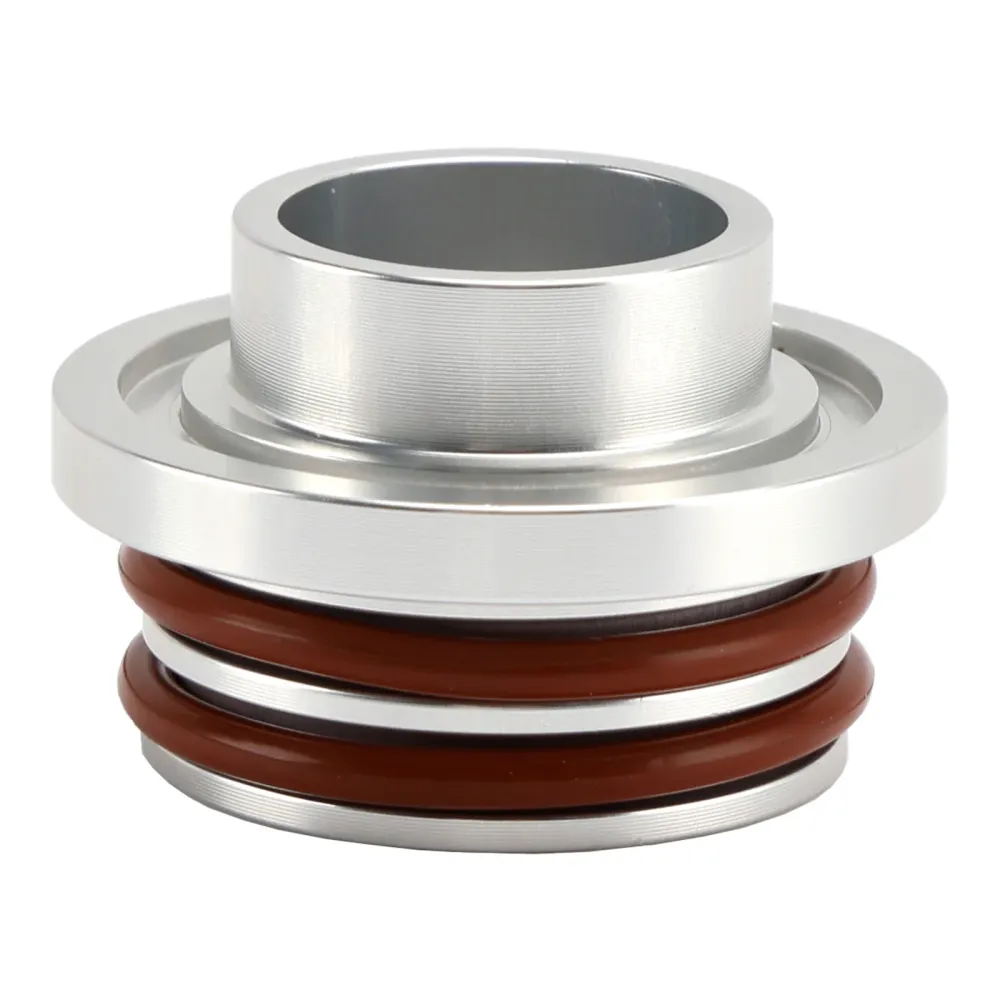

Oil Pump Aluminum sleeve – the seal connecting the oil pump to the pick up pipe supported by triple sealing for Fiat Alfa Romeo Lancia with 1.6 2.0 2.2 JTD Multijet engines
Oil Pump Pickup Pipe seal occurs as an O-ring that is situated between the oil pump and the pickup pipe Diesel engine. It’s main task is to fully seal the connection between them. However, with the passing of time, the gaskets hardens and allows the oil to pass trough, creating a leakage that causes the lubrication pressure to drop. This may lead to a critical enginge malfunction.

Our aluminum sleeve-gasket that connects the oil pump to the pick up pipe replaces a defective Oil Pump Pickup Pipe OE gasket that leads to an engine failure. The new sealing sleeve creates a permanent connection between the Oil Pump Pickup Pipe and the oil pan, which takes care of the manufacturing defect of that engine . It does not undergo deformation process at all like the OE seal happens to do so. The set includes O-rings made of Viton, a material that is temperature and oil resistant. The process of replacing the old gasket is simple, you just have to remove the old one and replace it with our sleeve.

Specifics:
Condition: 100% Brand New
OE/OEM Part Number: 6000625326, 71754365, 71749352
Type: Gasket
Material: Aluminum

Fitment:
For Fiat 500L (351_, 352_) 1.6 D Multijet, 199 B5.000, 105 HP (2012.09 – >)
For Fiat 500L (351_, 352_) 1.6 D Multijet, 940 C1.000, 955 A3.000, 55280444, 120 HP (2013.09 – >)
For Fiat 500X (334_) 1.6 D Multijet, 55260384, 114 HP / 120 HP (2014.09 – >)
For Fiat 500X (334_) 2.0 D Multijet 4×4, 55263087, 55263088, 136 HP / 140 HP (2014.09 – >)
For Fiat Bravo II (198_) 1.6 D Multijet, 844 A3.000, 198 A3.000, 105 HP (2007.09 – >)
For Fiat Bravo II (198_) 1.6 D Multijet, 198 A6.000, 90 HP (2008.03 – >)
For Fiat Bravo II (198_) 1.6 D Multijet, 198 A2.000, 120 HP (2008.03 – 2014.12)
For Fiat Bravo II (198_) 2.0 D Multijet, 844 A2.000, 198 A8.000, 163 HP (2008.09 – 2014.12)
For Fiat Bravo II (198_) 2.0 D Multijet, 198 A5.000, 165 HP (2008.09 – 2014.12)
For Fiat Doblo (263_) 1.6 D Multijet, 940 C1.000, 120 HP (2016.02 – >)
For Fiat Doblo (263_) 1.6 D Multijet, 263 A3.000, 263 A9.000, 100 HP (2010.02 – >)
For Fiat Doblo (263_) 1.6 D Multijet, 263 A8.000, 198 A3.000, 105 HP (2010.02 – >)
For Fiat Doblo (263_) 1.6 D Multijet, 263 A4.000, 263 A5.000, 90 HP (2010.02 – >)
For Fiat Doblo (263_) 2.0 D Multijet, 263 A1.000, 135 HP, 2010.02 – >)
For Fiat Ducato (250_, 290_) 115 Multijet 2.0 D, 250 A2.000, 250 A1.000, 116 HP (2011.06 – >)
For Fiat Freemont (345_) 2.0 JTD kombi, 940 A5.000, 939 B5.000, 140 HP, 170 HP (2011.08 – >)
For Fiat Freemont (345_) 2.0 JTD kombi, 939 B5.000, 136 HP, 163 HP (2011.08 – >)
For Fiat Grande Punto (199_) 1.6 D Multijet, 955 A3.000, 120 HP (2008.07 – >)
For Fiat Idea (350_) 1.6 D Multijet, 350 A2.000, 120 HP (2008.05 – >)
For Fiat Linea (323_, 110_) 1.6 D Multijet, 198 A3.000, 105 HP (2009.06 – >)
For Fiat Punto Evo (199_) 1.6 D Multijet, 955 A3.000, 120HP (2009.10 – 2012.02)
For Fiat Sedici (FY_) 2.0 D Multijet, D20AA, 135 HP (2006.06 – 2014.10)
For Fiat Tipo (356_) 1.6 D (356SXG1B), 940 C1.000, 55280444, 55260384, 120 HP (2015.10 – >)
For Alfa Romeo 159 (939_) 1.8 TBi (939.AXN1B), 939 B1.000, 200 HP (2009.05 – 2012.12)
For Alfa Romeo 159 (939_) 2.0 JTDM (939AXP1B), 939 B3.000, 170 HP (2009.05 – 2011.11)
For Alfa Romeo 159 (939_) 2.0 JTDM (939AXR1B), 939 B4.000, 136 HP (2010.06 – 2011.11)
For Alfa Romeo 159 Sportwagon (939_) 1.8 TBi (939BXN1B), 939 B1.000, 200 HP (2009.07 – 2011.11)
For Alfa Romeo 159 Sportwagon (939_) 2.0 JTDM (939BXP1B), 939 B3.000, 170 HP (2009.07 – 2011.11)
For Alfa Romeo 159 Sportwagon (939_) 2.0 JTDM (939BXQ1B), 844 A2.000, 163 HP (2009.05 – 2011.11)
For Alfa Romeo 159 Sportwagon (939_) 2.0 JTDM (939BXR1B), 939 B4.000, 136 HP (2010.06 – 2011.11)
For Alfa Romeo Brera (939_) 1.8 TBi, 939 B1.000, 200 HP (2009.05 – 2010.06)
For Alfa Romeo Brera (939_) 2.0 JTDM, 844 A2.000, 163 HP (2008.03 – 2010.06)
For Alfa Romeo Brera (939_) 2.0 JTDM, 939 B3.000, 170 HP (2009.05 – 2010.06)
For Alfa Romeo Giulietta (940_) 1.6 JTDM, (940.FYB1_), 940 C1.000, 940 C5.000, 120 HP (2015.02 – >)
For Alfa Romeo Giulietta (940_) 1.6 JTDM (940.FYE1_), 940 C5.000, 116 HP (2015.09 – >)
For Alfa Romeo Giulietta (940_) 1.6 JTDM (940FXD1A), 940 A3.000, 105 HP (2010.04 – >)
For Alfa Romeo Giulietta (940_) 1.8 TBi, 940 A1.000, 230 HP (2010.04 – 2013.09)
For Alfa Romeo Giulietta (940_) 1.8 TBi (940FXC1A), 940 A1.000, 235 HP (2010.04 – >)
For Alfa Romeo Giulietta (940_) 2.0 JTDM, 940 A4.000, 940 B4.000, 170 HP (2010.04 – >)
For Alfa Romeo Giu
